Product Name: Polyphenylene Sulfide (PPS) Resins
Generic Name: N/A
Chemical Formula / Diagram:
Product Overview: PPS is a unique engineering plastic material that combines many of the best properties of plastics and metals. It has high temperature resistance, exceptional chemical resistance, inherent flame resistance UL 94V-0, superior electrical properties, and outstanding precision moldability and dimensional stability.
Applications: Electrical and electronic parts - Switch bases, relay components, connectors, coil bobbins, etc.
Electrical and electronic appliance components
Automotive applications - Emission control components, lighting components, fuel system parts


Typical Properties/Grades:

  ASTM  GS-40-11
Tensile Strength   D-638 103 psi (Mpa)   26.1 (181)
Flexural Strength   D-790 103 psi (Mpa)
 39 (265)
Flexural Modulus   D-790 106 psi (Gpa)
 2.2 (15)
Izot Impact Strength (notched)   D-256 ft 16f/m (J/m)
 1.5 (80)
Heat Deflection Temperature   D-648º F (ºC)
 >500 (>260)
Coefficient of Linear Thermal Expansion   D-696 10-5 in/in ºF
 (10-5 cm/cm ºC)
 1.2 (2.2)
Flammability  UL-94-  V-0
Volume Resistivity  D-257 (ohms X cm)
 4x1016
Dielectric Constant  D-150
 3.9

Product Name: Petcoal
Generic Name: C9 Hydrocarbon Resins

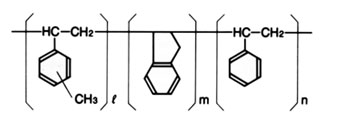

Chemical Formula / Diagram:
Product Overview: Petcoal is a family of aromatic hydrocarbon resins which exhibit excellent solvency. Petcoal resins are compatible with a wide range of synthetic resins and rubbers; they have good thermal stability and weathering properties as well.
Applications: Paints
Printing inks (offset, gravure)
Adhesives
Pressure sensitive adhesive tape
Rubber agents
Car tires


TYPICAL PROPERTIES/GRADES:

  Petcoal LX Petcoal 120 Petcoal 130 Petcoal 140 Testing Method
Appearance Pale, yellow, clear Visual examination
Softening Point (ºC) 98 120
125
135
JIS K-2207 R&B
Color 7
7 7 7 ASTM D-1544 (Gardner)
Bromine Number 25 25 25 20 ASTM D-1159
Acid Value 0.1 max
0.1 max
0.1 max
0.1 max
JIS K-5902


Product Name: Petrotack
Generic Name: C5 / C9 Hydrocarbon Resins

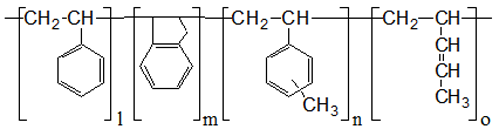

Chemical Formula / Diagram:
Product Overview: Petrotack is an aliphatic and aromatic copolymerization hydrocarbon resin made of C5 and C9 components. Petrotack has excellent compatibility with various oils, resins and rubbers. Petrotack also enables improved tackiness and adhesiveness when used in polymers.
Applications: Paints
Printing inks (offset, gravure)
Adhesives
Pressure sensitive adhesive tape
Rubber agents
Car tires


TYPICAL PROPERTIES/GRADES:

  Petrotack 60 Petrotack 70 Petrotack 90 Petrotack 90V Petrotack 100V Testing Method
Appearance Pale, yellow, clear  Visual examination
Softening Point (ºC)  72 70 95 87 96 R&B
Color 7
7 6 7 7 ASTM D-1544 (Gardner)
Bromine Number 50 45 35 45 45 ASTM D-1159
C5 Content (%) 70 50 30 70 60 H-NMR
Acid Value 0.1 max
0.1 max
0.1 max
0.1 max 0.1 max
JIS K-5902
